4k HDBaseT Transmitter

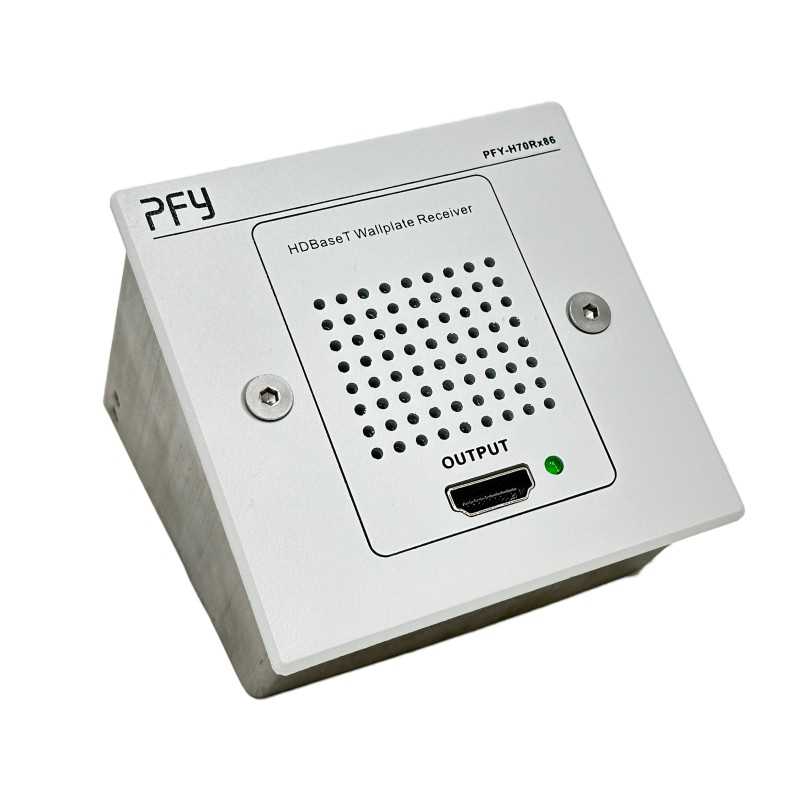

The PFY-H70Rx86 is a HDMI Extender (Receiver) of the latest generation, which supports 1x HDMI output and LED indicator. It supports a losslessly transmission distance of up to 70m. The receiver supports POC and will supply the voltage to the transmitter via the single CAT cable.  The resolution can be up to 4k@30Hz. This receiver was developed for wall mounting installation according to EU standard.

Highlights In the Package Highlights

HDMI Extender Highlights

• HDMI Extender with a distance up to 70m
• Supports resolutions up to 4k 60Hz (Chroma Sampling 4:2:0)
• Recommended Cable Type Cat6 / 6a / 7 or higher
• Power supply with 12V / 1,5A
• Supports PoC (Power over Cable), PoE function
• LED indicator to see whether stable link is given between Transmitter and Receiver
• Easy Wall Mount installation
• Ideal for Meeting rooms, class rooms or other long distance transmission applications

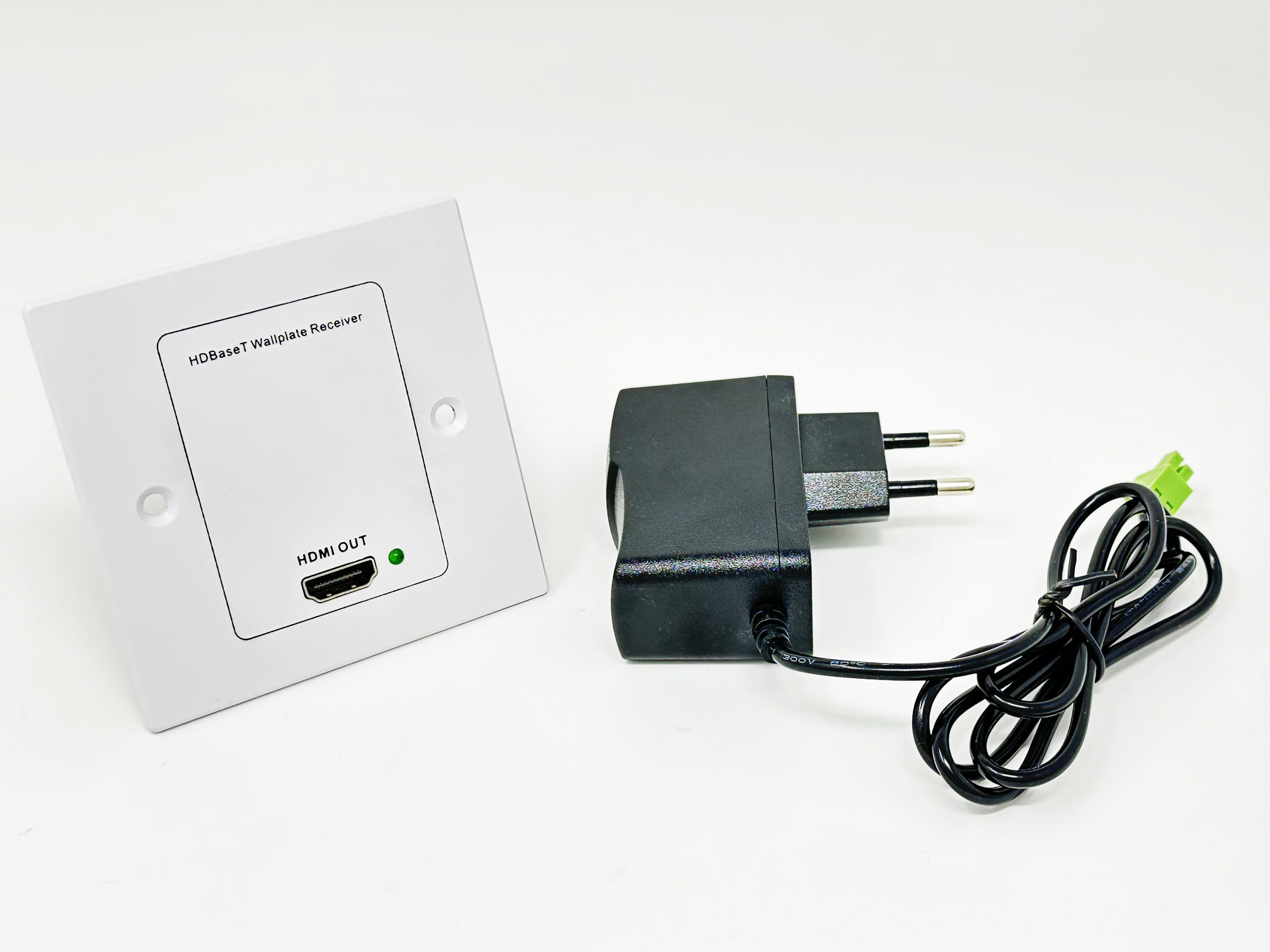

In the Package

PFY-HDMI Extender (Receiver) What is in the box?

• 1 x HDBT Receiver
• 1 x external Power supply
• 1 x Quick Installation Guide
