4k HDBaseT Transmitter

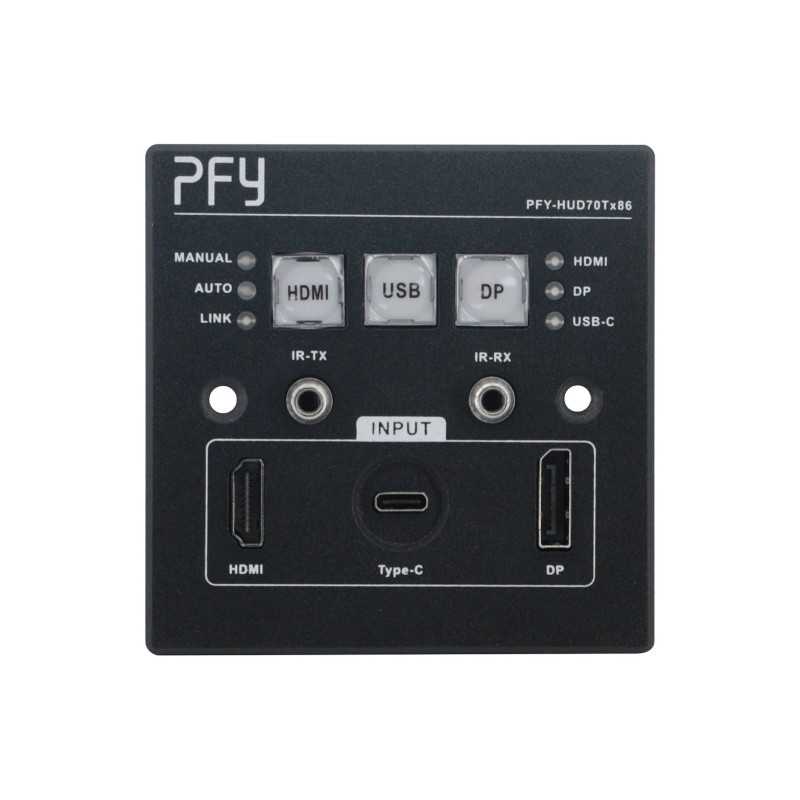

The PFY-HUD70Tx86 is a latest generation HDBaseT converter that converts HDMI, DisplayPort and USB-C signals into an HDBT signal and transmits them losslessly over a distance of up to 70m. The transmitter supports POC, which can come from a matrix or other HDBT device (receiver). It can be controlled or configured via software via the USB-C port on the back. The additional RS232 port can be connected to an external control panel, allowing you to adjust the parameters or send additional commands to your device, such as a TV to control the volume. With the IR-Tx and IR-Rx ports on the front, you can even use the remote control to send commands over a long distance of up to 70m.The commands are transmitted to the HDBT receiver via the CAT6 cable. No additional cables required. The desired signal source can be selected using the individual buttons. This transmitter is designed to be wall mounted to EU standards, allowing for easy installation.

Highlights In the Package Highlights

PFY HDBaseT Transmitter Highlights

• Transmission of HDMI, USB-C and Display Port via HDBT up to 70m
• Supports 10.2Gbps for 4k UHD, FHD 1080p/60Hz resolutions via Cat6 cables
• PoC capable (power over cable)
• RS232 programming
• IR Pass-Through
• Wall installation device according to EU standard
• EDID By-Pass
• HDCP 1.4 & 2.2 support
• Additional DC output on the rear to supply external devices like AV Controller with just one power supply.

In the Package

What is in the box of PFY's HDMI Extender?

• 1 x HDBaseT Transmitter
• 1 x external Power supply
• 1 x Quick Guide
