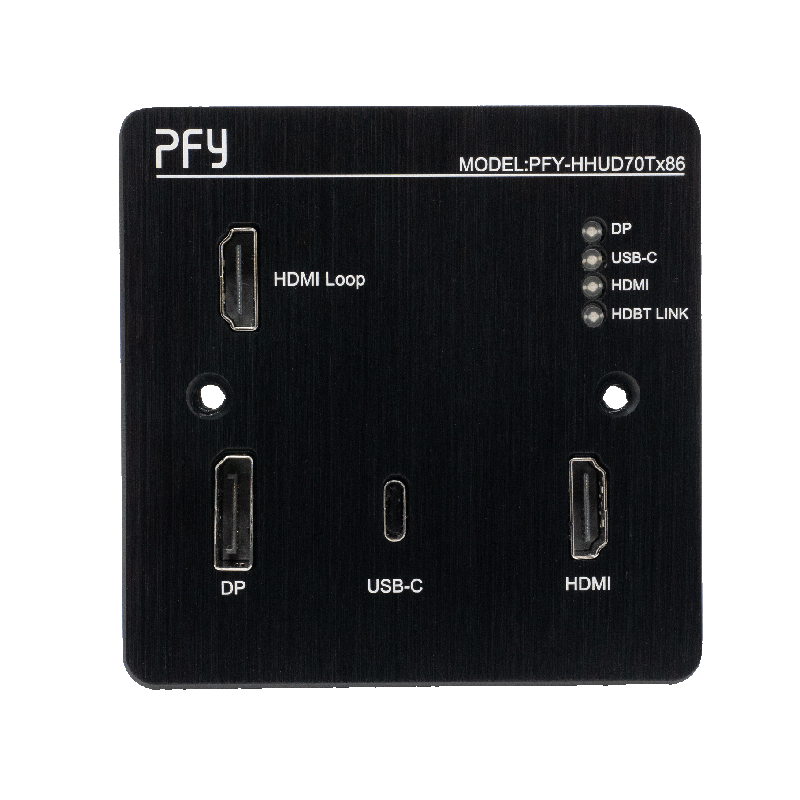

4K HDBaseT Wallplate Transmitter 3 In HDMI USB-C DisplayPort
€809.20
Tax included
€680.00 Tax excl.
Delivery within 2-3 daysHDBaseT Transmitter / HDMI Extender
- Transmission of HDMI, USB-C and Display Port via HDBT up to 70m
- Supports 10.2Gbps for 4k UHD, FHD 1080p/60Hz resolutions via Cat6 cables
- PoC capable
- RS232 programming
- HDMI Loop Function
- Wall mount installation device according to EU standard
- Remote Control via RS232 or Software
- EDID By-Pass and programmable
- HDCP 1.4 & 2.2 support
Privacy policy
World Wide Shipping
Return policyShop With Confidence Easy 14-Day Return

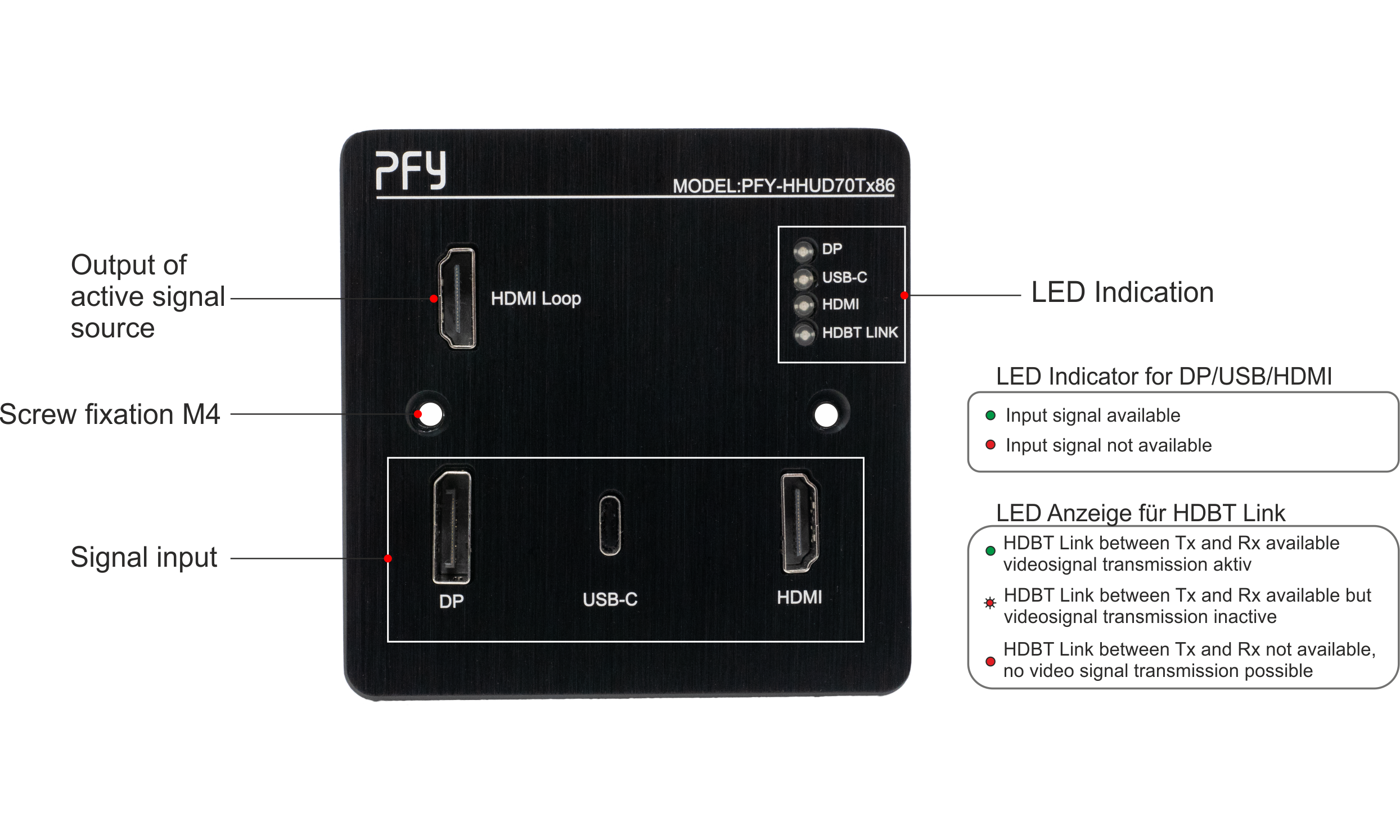

4k HDBaseT Transmitter - Wall plate

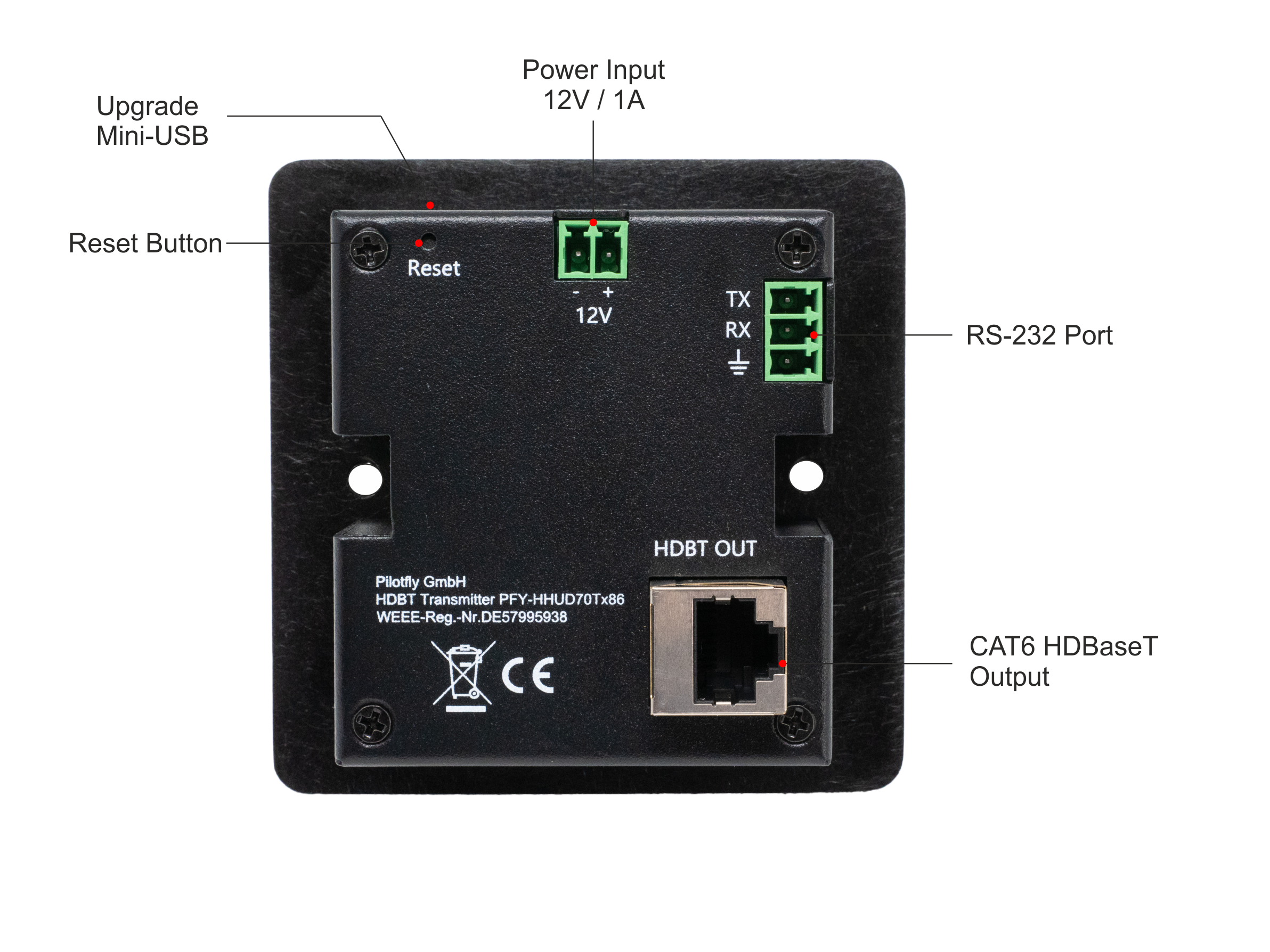

The PFY-HHUD70Tx86 is a latest generation HDBaseT converter that converts HDMI, DisplayPort and USB-C signals into an HDBT signal and transmits them losslessly over a distance of up to 70 m. The transmitter supports PoC, so only one power supply is necessary for the transmitter and receiver unit. The device can be controlled or configured via software via the RS232 connection on the back. The RS232 port can be connected to an external control panel, such as the PFY-CTR0108 media control, to control the inputs remotely. With the additional HDMI port you have the option of connecting an additional display that mirrors the input signal that is transmitted via HDBT. The device is designed for wall mounting in accordance with EU standards and therefore enables quick and easy installation.
Highlights In the Package Highlights
PFY HDBaseT Transmitter Highlights
- Transmission of HDMI, USB-C and Display Port via HDBT up to 70m
- Supports 10.2Gbps for 4k UHD, FHD 1080p/60Hz resolutions via Cat6 cables
- PoC (Power over Cable)
- Remote control via Software (RS232 port)
- HDMI Loop support
- Wall installation device according to EU standard
- EDID By-Pass
- HDCP 1.4 & 2.2 support
In the Package
What is in the box of PFY's HDMI Extender?
- 1 x HDBaseT Transmitter
- 1 x external Power supply
- 1 x Quick Guide

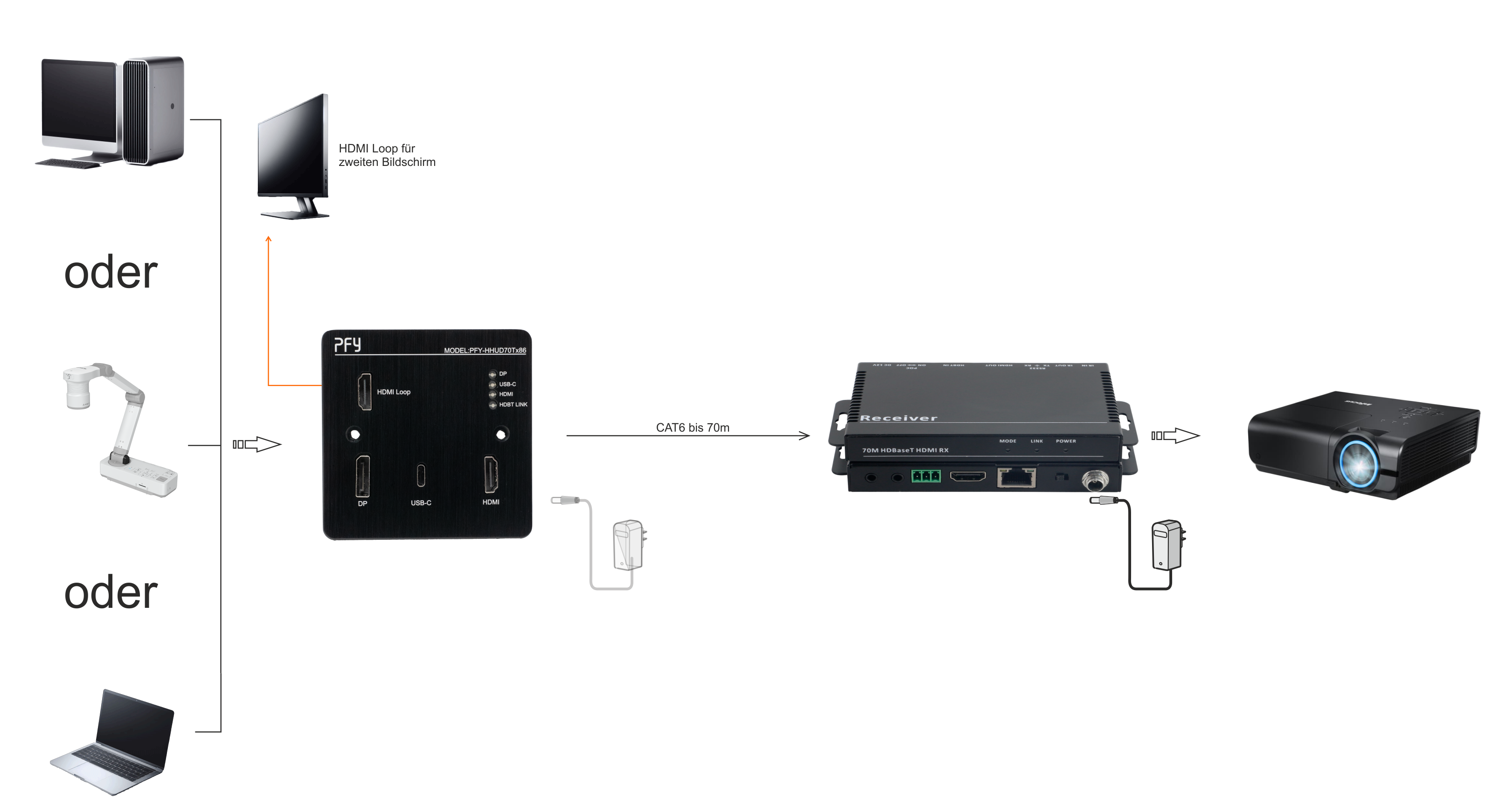

Example schematic
Installation overview PFY-HHUD70Tx86
PFY-HHUD70Tx86
16 Items
Data sheet
- Weight
- 260g
- Color
- black
- Dimension [mm]
- 86 x 86 x 40mm
- Power consumption
- 12 Watt
- Operation Voltage
- 12V
- HDMI Standard
- 1.4
- Product material
- Metal
- Operation temperature
- -10 ~50°C
- HDCP Standard
- 2.2
- Video Inputs
- HDMI, USB-C, DisplayPort
- Video Output
- RJ45 jack (CAT6 cable)
- Screw holes for fixation
- 60mm
- Communication
- RS-232 Protokol (ASCII, HEX)
- Front Plate
- Aluminum
- Area of application
- HDBaseT Wallplate Transmitter
- Application
- Conference rooms, educational facilities
- Assembly
- BR Cable Duct-mounting / Wall-mounting
- Max. Transmission distance
- 30m (4k UHD)
70m (1080p) - Max. Resolution
- 4k UHD @30Hz
- Inputs
- HDMI, DisplayPort & USB-C
- Output
- HDBaseT
HDMI (Loop) - Scope of delivery
- 1 x external power supply
1 x Quick Start Guide
Phoenix Connector(s) - Power over Cable (PoC)
- Yes
Specific References
- EAN13
- 004936424964
New
